Rotary steering System T 67 is suitable for outboard engines up to 55 HP. It can also be used with Morse C230/231, Teleflex, Compact, TX805. Features and Technical information: All stainless steel output end of cable as per ABYC safety standards, Corrosion-resistant materials, Standard friction knob externally adjustable,
Four optional helm positions to facilitate steering cable installation, 90 degree black bezel, Lock-to-lock steering wheel turns: approx. 2.5, Stroke: 230 mm, Maximum allowable steering wheel diameter: 380 mm, Minimum steering cable bend radius: 200 mm, Maximum operating load at the tiller end: 1200 N (125 kg). Suitable cable: M58. CABLE AND STEERING WHEEL NOT INCLUDED!
45.067.00
Steering system for outboard, inboard and SX-drive engines boat up to 9/10 meters and maximum speed of 50 MPH. Steering cycle is 3, minimum curve radius 200 mm and stroke 228 mm. Suitable cable: M66. CABLE AND STEERING WHEEL NOT INCLUDED!
45.185.00
STEERING WHEEL, 350 mm, MAGNIFICO
Steering wheel Magnifico. Stainless steel metal frame. Universal cone. Teak - matt finish. Diameter: 350 mm.
45.177.04
STEERING SYSTEM FULL SET- ULTRAFLEX, ROTECH 4, 14"
Steering system Ultraflex Rotech 4 includes steering box T67 (suitable for up to 55 HP motors), cable M58 with length 14" (426,72 cm) and black Thermoplast V32 steering wheel. Diameter: 340 mm.
M13025174

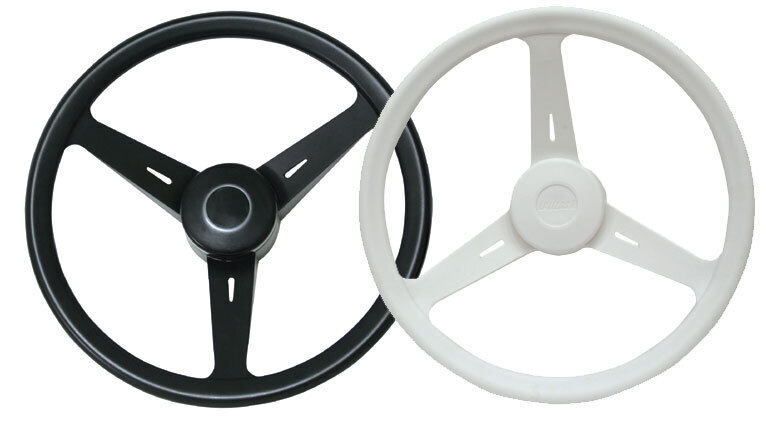

STEERING WHEEL, 350 mm, S/S, WHITE
Soft polyurethane steering wheels fitted with stainless steel spokes. Diameter: 350 mm.
45.128.03
|
