The deep V-hulls of the new sportboats were designed to allow a quiet journey in rough conditions. The stronger the deadrise the more the necessity rises to set the trim tabs to going straight. The rolling and the heeling is dependent on the wind and the location of the passenger. The pitch is dependent on the speed and load. While changing course, the wind direction changes and the boat has to be trimmed again. If the passengers change their location, a new trim is necessary also. The necessity to constantly adjust the trim to the changing load conditions distracts the boat operator constantly and is a high safety risk especially at high speed. The automatic trimm system (ACS) is taking that work from the operator. Trimm position changes through wind, new course or changed seating positions of passengers are automatically dealt with through the system. The ACS RP (Roll & Pitch) sets the boat automatically in an optimal trim concerning the rolling axle by avoiding the heeling. The transverse axis steering improves the visibility and makes driving in a half glide are possible. Additionally, the exceleration is improved.

Suited for almost all trim tab systems!

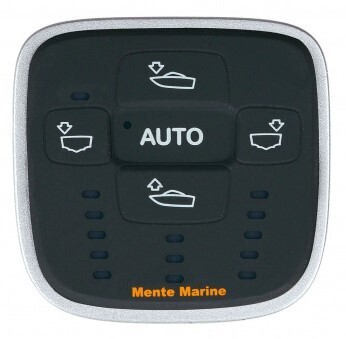

Function: with the operating panel you can turn a manual trim system into a fully automatic trim system. Installation: the existing operating unit is replaced by the ACS operating unit by Mente Marine – connection of 6 cables. The installed sensors measure the movement of the boat.

Technical Data:

Compatibility (hydraulic trim tabs): Bennet, Instatrim QL, Trimmaster, TFX Teleflex, TX Controls

Compatibility (electromechanic trim tabs): Lectrotab, Lenco, Eltrim, Ultraflex, Bennet

Steering of the rolling and long axles

Boat length: 15 – 40 foot (4.5 – 12m)

Trim tab type recognition: automatic

Sensitivity: automatic, adaptive to the boat type

Dimensions (W x H x D): 80 x 77.5 x 10 mm

Waterproof according to IP68

Operating temperature: -10°C – +85°C

Storing temperature -40°C – +85°C

Voltage supply: 10 – 30 V DC

Max. power intake: 18 A (when trim tabs are activated)

Power intake: 0,02 A (in neutral)

Registration: CE

Files:

MENTE MARINE - USER MANUAL

669.00 €

Installments
21.70 €

48 months

Price without VAT: 557.50 €

Delivery to our warehouse: 3 days

Estimated Delivery Time

AUTOMATIC TRIM SYSTEM - MENTE MARINE ACS RP

If you have not found a suitable product from an online webstore, please see the product catalogues!

Trim tabs let you optimize your boat’s trim, its fore and aft and athwartships attitude in the water, to adapt to changing weather and sea conditions and to improve its ride and handling. You can control bow attitude, just like with power trim, but electric and hydraulic trim tabs also let you dial-in side-to-side control to compensate for uneven weight distribution, even at low speeds. Regardless of your boat size, speed, or shape, trim tabs will improve performance and comfort.

What benefits will trim tabs provide?

Increased performance: Most boats are designed to plane at a particular speed and weight distribution. When weight increases, or speed decreases, the stern settles down and fuel economy suffers. Trim tabs counteract this tendency and allow the boat to achieve its most efficient attitude whatever the weight or speed.

Increased fuel efficiency: When the stern is down your boat pushes a “hill” of water in front of it, which requires more energy to overcome. The hull drag and prop angle also contribute to this fuel–wasting inefficiency. Trim tabs adjust independently of your power trim and allow each to be trimmed separately for maximum efficiency.

Increased safety: With the bow high your visibility forward is greatly reduced. Using trim tabs to adjust the boat to the proper running attitude preserves forward vision.

Automatic, electric or hydraulic tabs?

Automatic/non–hydraulic trim tabs use nitrogen gas cylinders, work like shock absorbers and require no adjustment while under way. They require no through–transom wires or plumbing and are simplest to install, but cannot be adjusted under way if heavy Uncle Henry decides to change sides. Adjustment is easy with the boat on the trailer, and can be varied from right to left sides to correct for a permanent list.
Automatic tabs may work better on smaller boats such as inflatables, boats with no room for a hydraulic pump or for the budget-conscious boater. Automatic tabs are a good choice for small fast boats, boats that tow tubes or other types of “sport boats” that change speed and direction frequently. Acting like the suspension system on a car, automatic tabs react faster than a person can, and they react automatically.
Regardless of boat length, for greatest control of trim we recommend adjustable electric or hydraulic trim tabs. Adjustable trim tabs provide immediate control for varying weight distribution and changing sea conditions. These are ideal for fishing boats, performance boats, trawlers, cruisers, and yachts of all sizes.

Electric trim tabs are controlled by electric actuators that deflect the trim tab planes up and down. Because the actuators stop and start immediately with the press of the switch, they provide precise control and instant response time. Electric trim tabs do not require the installation of hydraulic hoses and pump and are generally regarded as easier to install.

Hydraulic trim tab planes are controlled by hydraulic cylinders. A hydraulic pump inside the boat provides the pressure to actuate the cylinders.

What measurements do you need?

Trim tab packages are designed for owner–installation with common tools. When ordering, remember to measure the longest plane span possible between the outside edge of the transom and the centerline. Subtract 7-10cm for clearance on the outer edge and 20-30cm of clearance from centerline (to account for the outboard or sterndrive’s lower unit). A good rule of thumb is at least 7,5cm of width per boat meter of length.

Installing Smart Tabs

With an electric drill, two drill bits (3,2mm and 4,8mm) a Phillips screwdriver and two wrenches, a boat owner with basic to intermediate ability can install Smart Tabs in less than an hour. Professional installers should be able to install Smart Tabs in 30 minutes or less.
Installing Smart Tabs involves assembling a pair of Trim Plates by bolting them together with their hinges, brackets and zinc anodes (if you are going to use them in saltwater). Next, mount the Trim Plates in the correct location on the bottom of the transom with the included sheet metal screws. Then mount the upper hardware (the Gas Actuators and Transom Brackets) using the included templates, making sure each actuator is perpendicular to its hinge/plate.
Finally, adjust the angle of the tabs using a 25° template. The amount of lift pressure the tabs provide (and how much they lift your boat’s transom) is adjustable on the trailer through a range of five different settings.
